HIGH STEER RAM MOUNT, 5 TON
HIGH STEER RAM MOUNT, 5 TON
HIGH STEER RAM MOUNT, 5 TON
HIGH STEER RAM MOUNT, 5 TON

HIGH STEER RAM MOUNT, 5 TON

5T 6123 F

Regular price$995.00 CAD
/
Shipping calculated at checkout.

High Steer Arms

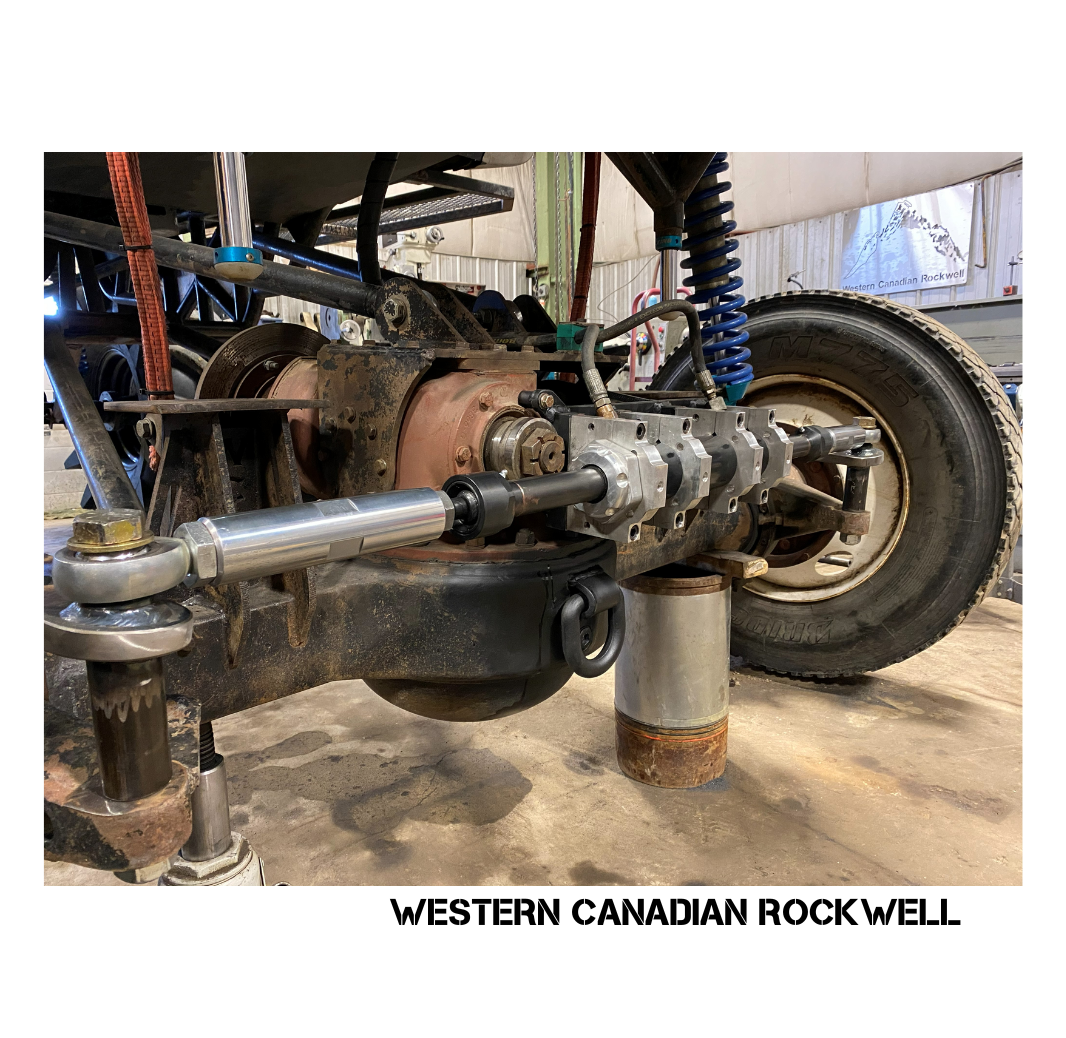

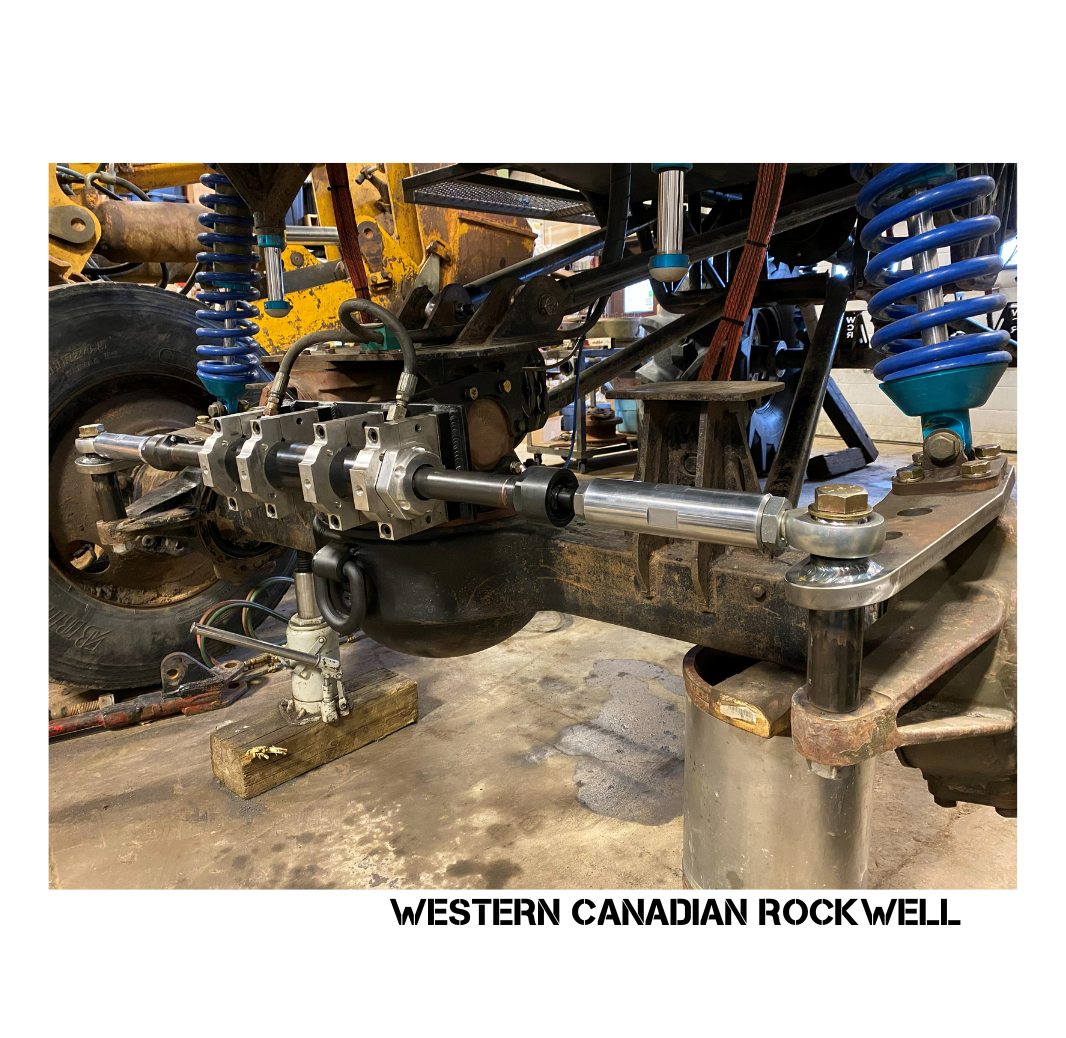

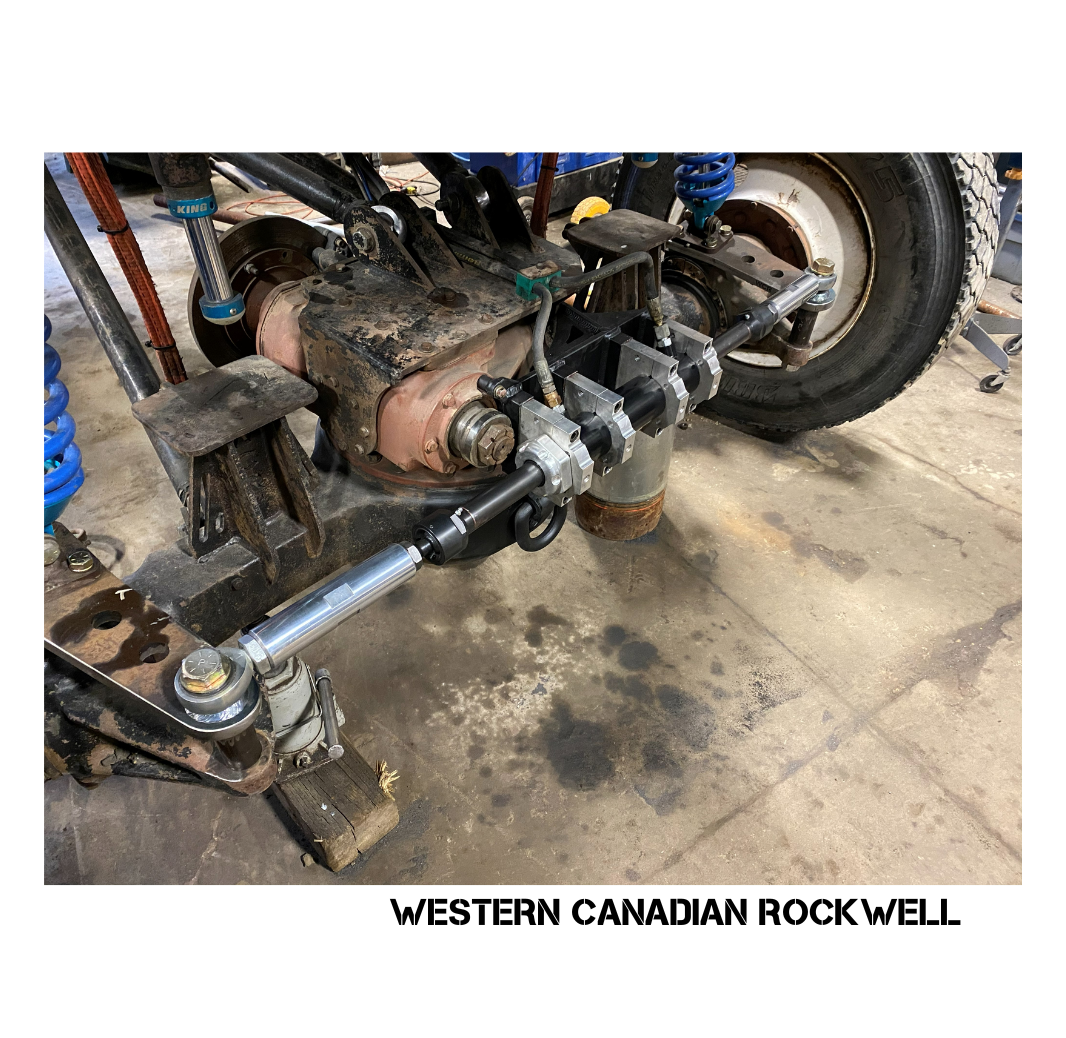

High steer ram mount for 5 ton axles, this allows you to mount a double ended ram on the chunk, keeping it up out of the way of rocks, mud and logs, this kit bolts on so welding and fabrication is not required, made from 3/8 T1 steel it is jigged and fully welded

High steer arms are sold separately and will be required to run this kit



This kit only works on the 5 Ton Small Pinion Bearing side, this ram mount kit will only really work on the back side of a rear steering axle. The correct configuration for a front axle, is with the big pinion bearing facing forward. This allows the crown and pinion in the differential to mesh on the drive side of the ring gear. Please contact us if you have any questions or you would like further details
