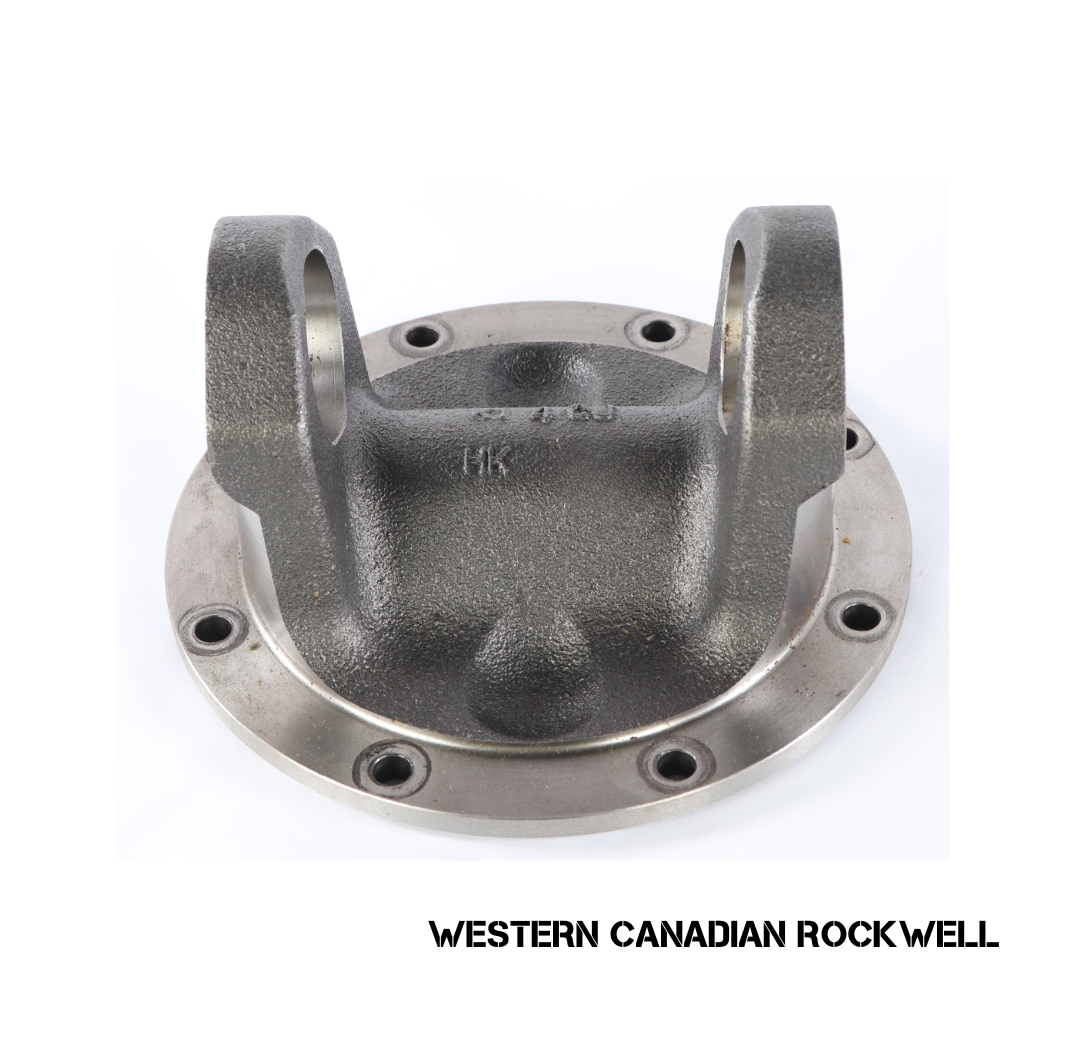

This Pinion Yoke is required to attach a 5 Ton or any 1610/1710 sized U-Joint to the round 8 bolt Pinion Yoke of a 5 Ton Axle
Works with 1610/1710 U-Joint
Price is for one Yoke
U-Joint Bolt Kit is not included
Old parts may show slight signs of wear, but will work exactly as intended. If you prefer brand new select new when checking out

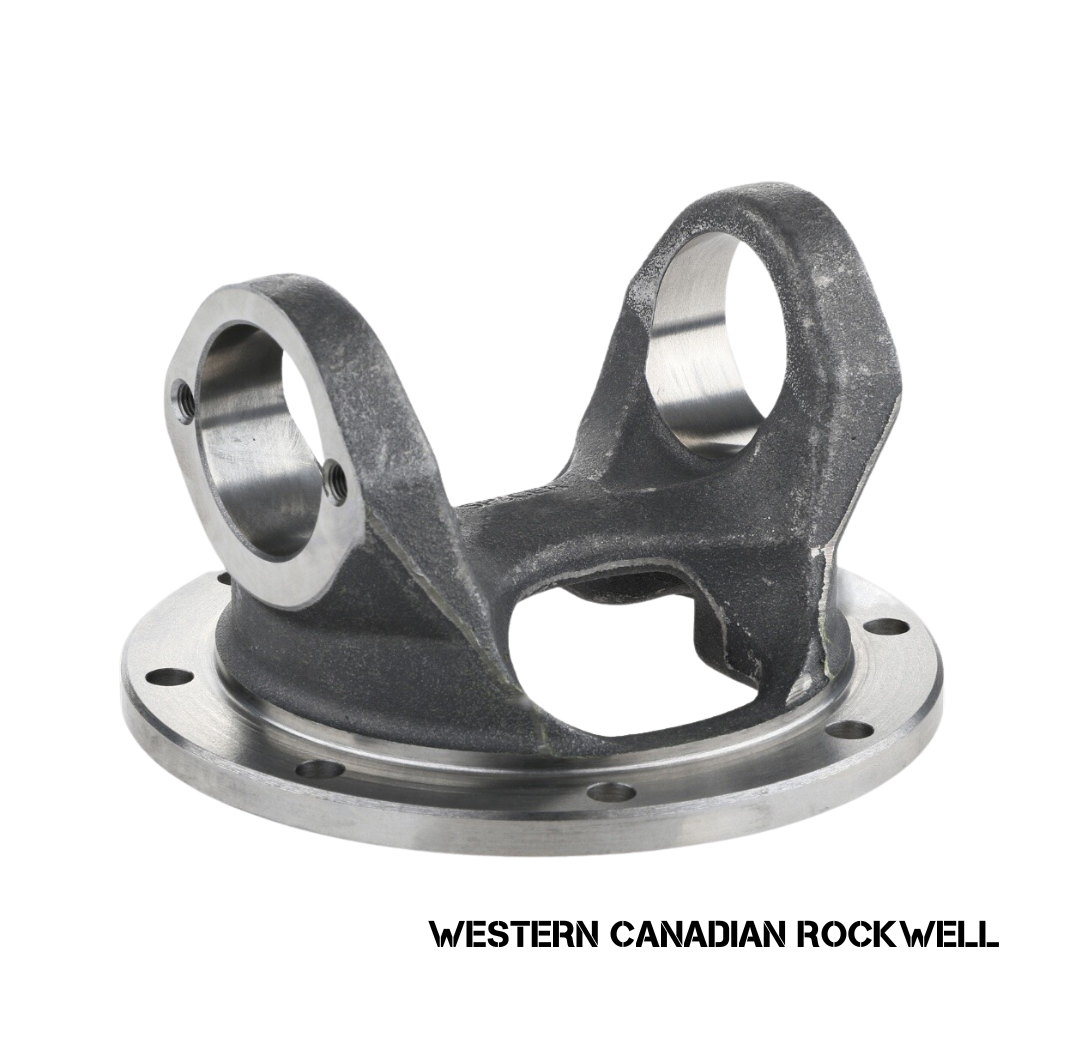

These are a standard 5 Ton round pattern 1610 U-joint adapter or 1710
Dimensions are listed below.
Series: 1610
Flange Or Swing Dia. In.: 8.00"
Bolt Circle Dia. In.: 7.250"
Bolt Hole Dia. In :.375 - DRILLED
Number Of Bolt Holes: 8
Pilot Dia. M=Male F=Female: 7.750" - MALE
Flange Face To C/L In.: 2.750"
Outside Yoke Dimension In.: 5.312
Yoke Bearing Dimension In.: 1.875
Image may not be the same as what you get, please refer to dimensions above to ensure you get the correct yoke. New flange yokes do not look the same as military style, they should match and bolt up the same as long as dimensions are verified.
Find the Bolt Kit here
Will bolt up to a 5 Ton Pinion Yoke for a bigger drivershaft, check dimensions on your yoke first to ensure correct size.
Series: 1710
Flange Or Swing Dia. In.: 8.00"
Bolt Circle Dia. In.: 7.250"
Bolt Hole Dia. In :.375 - DRILLED
Number Of Bolt Holes: 8
Pilot Dia. M=Male F=Female: 7.750" - MALE
Flange Face To C/L In.: 3.00"
Outside Yoke Dimension In.: 6.094"
Yoke Bearing Dimension In.: 1.938"
