Like New Take Off Surplus

Bulk Pricing Available!

20” Diameter x10” Wide

10x 335mm Bolt Pattern with a 11.25” Hub Pilot,

Dot Approved Double Internal Bead Lock

Aluminum Wheels Weight 65lb

Can Be Mounted On 2.5 Ton or Smaller Axles with an Adaptor Plate

5 Ton Adaptor Plates are not available

Torque Spec for Hutchinson Beadlock Mounting Bolts:

PN: WI 1233-C
Spec: 200 (+/- 10) ft-lbs

PN: WO 1199-A
Spec: 200 (+/- 10) ft-lbs

PN: WO 1184-C
Spec: 200 (+/- 10) ft-lbs

For any other questions Hutchinson can be contacted directly at 609-858-5672

Wheel Part Number can be found on either Outer Ring or the Inner Bell of all Hutchinson Wheels, please see photo with Part Number Circled in the images below.


Hutchison Double Internal Locking Wheels, unlike typical Beadlock Wheels that clamp the Tire to each bead with a separate ring, the Hutchison style Wheels, use a 2 piece Wheel along with a Tire insert. The Tire insert fits inside the Tire, up against the Tire bead. Once fit into the Wheel, the 2 halves of the Wheel are pulled together, essentially crushing the Tire against the Wheel.

 **Do Not come with Beadlock Inserts, we do carry stock on them you can find them Here**

***Please note Rims are subject to availability, shipping will be charged separately, please contact us for availability and a shipping quote***

 ** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

20” Diameter x10” Wide

10x 335mm Bolt Pattern with a 11.25” Hub Pilot,

Dot Approved Double Internal Bead Lock

Steel Wheels Weight 165lb

Can Be Mounted On 2.5 Ton or Smaller Axles with an Adaptor Plate

5 Ton Adaptor Plates are not available

 Adapter Plates


Hutchison Double Internal Locking Wheels, unlike typical Beadlock Wheels that clamp the Tire to each bead with a separate ring, the Hutchison style Wheels, use a 2 piece Wheel along with a Tire insert. The Tire insert fits inside the Tire, up against the Tire bead. Once fit into the Wheel, the 2 halves of the Wheel are pulled together, essentially crushing the Tire against the Wheel.

 **Do Not come with Beadlock Inserts, we do carry stock on them you can find them Here**

***Please note Rims are subject to availability, shipping will be charged separately, please contact us for availability and a shipping quote***

 ** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

 Good used 20" x 10" wide wheels, bolt together design

Will fit M35 and Fuso trucks, 2.5 Ton Rockwell Axles

6x8.75” lug centric bolt pattern

wheels are complete and come with new O-rings, price is per wheel

contact for if you require a shipping quote

20x10, will fit 5 Ton and Meritor Axles, this is a standard Semi Wheel Bolt Pattern

Hutchison Double Internal Locking Wheels, unlike typical Beadlock Wheels that clamp the Tire to each bead with a separate ring, the Hutchison style Wheels, use a 2 piece Wheel along with a Tire insert. The Tire insert fits inside the Tire, up against the Tire bead. Once fit into the Wheel, the 2 halves of the Wheel are pulled together, essentially crushing the Tire against the Wheel.

 **Do Not come with Beadlock Inserts, we do carry stock on them you can find them Here**

***Please note Rims are subject to availability, shipping will be charged separately, please contact us for availability and a shipping quote***

 ** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

Works with the following Axles:

• 2.5 Ton
• 5 Ton
• Meritor
• F106

2 Piece Flange Wheel Nut, 33MM Hex

Item #28 on the Parts Breakdown

CTIS Lug Nut

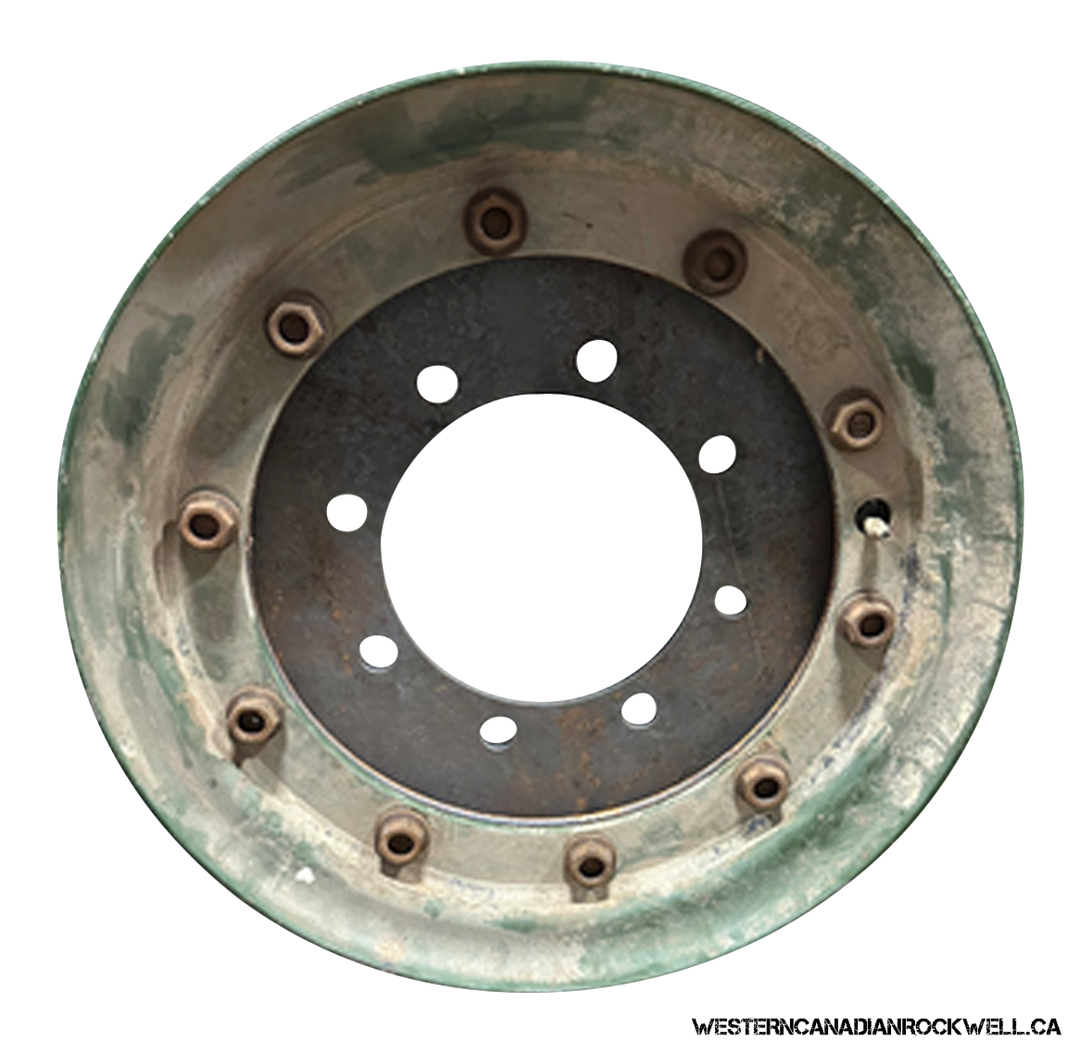

Looking for a 20" military style wheel for your GM Kodiak or Top Kick?
These are the answer!

20" diameter x 11" wide these feature a bolt together design and can be used in conjunction with a beadlock insert to run your tires at low pressure.

Here is a convenient way to adapt stud piloted wheels to vehicle with 22mm Wheel Studs
