Select One Time for a limited 30 day hosted access or choose a Monthly Subscription Plan in the options below

One Time Purchase

Billed once for 30 day hosted access to the Manual. Access is granted immediately once Subscription has been paid for, you will need an account to access the Manual. No Cancellations are granted with the One Time Purchase option.

Monthly Subscription

Billed once Monthly on the same date of the month as your purchase date. Access is granted immediately once Subscription has been paid for, you will need an account to access the Manual.

The Monthly Subscription requires at minimum 2 monthly billing cycles in order to receive the product at reduced price. By clicking add to cart you agree to these terms.

**Monthly Subscription Cancellation**
You may cancel this subscription any time after your second subscription payment has been received, before your next bill date to avoid another charge. Subscription is available for the entire month, even if cancelled before next bill date. Once cancelled you will not be billed on your next bill date and you will lose access on the date of renewal.

** PLEASE NOTE THIS IS AN ONLINE COPY ONLY, YOU ARE NOT ABLE TO DOWNLOAD THE MANUAL OR PRINT IT OFF**

Maintenance Manuals for all our Axles and T-600 Transfer Case

Works with the following Axles:

• 2.5 Ton
• 5 Ton
• Meritor
• F106

Overall Length from under the head of the bolt: 2.5715"

Overall Length from under the head of the bolt: 2.8435"

Will work for both 2.5 Ton Axles and 5 Ton Axles that are not using the factory drum brakes

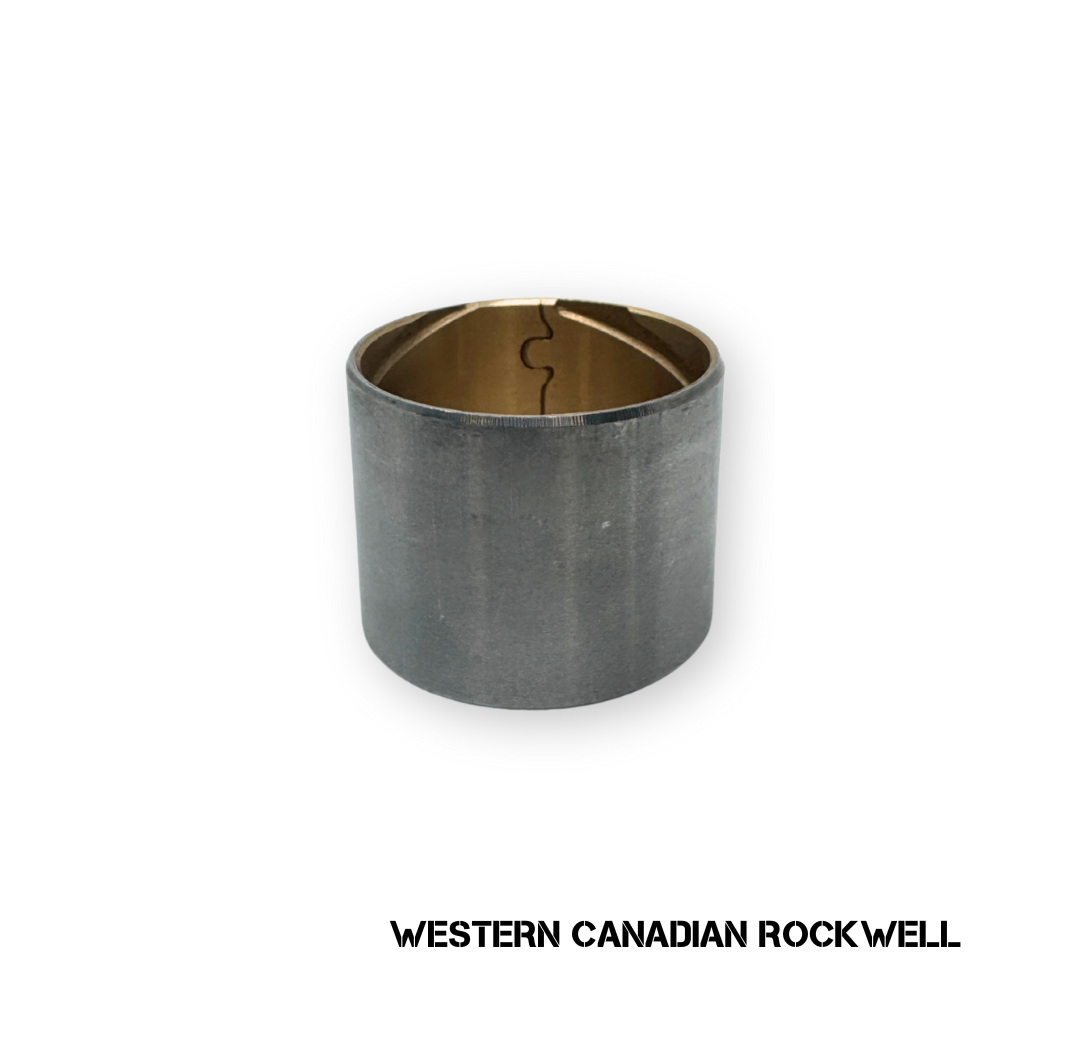

Upper and Lower Plates with bushings installed are pre-fit, ready to drop in with no machining required.

if you chose to purchase the bushing without the plate they will need to be sized after being pressed into the plate, this will require access to a lathe or reamer

2.5 Ton King Pin Shim these fit on the upper king pin and take up any slack in the knuckle

Price is per shim

2.5 Ton Hub (Wheel) Socket, undo and tighten spindle nuts.

2.5 Ton used hub, good used condition, cleaned up and inspected

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

2.5 Ton front spindle stock

price is for 1 good used spindle

we can drill out the mounting holes to 7/16 for an additional $25 before shipping if you are running upgraded knuckles, please contact us before ordering if you requite this service

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

2.5 Ton Spindle Nut

2 Used per Hub

Price is for 1 nut

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

This lock tab fits between the 2 nuts that hold your hub bearings on, these should be replaced every time the spindle nuts are removed as they can become damaged  allowing your spindle nuts to become loose and the hub falling off the vehicle

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

7/16" Grade 8 Bolt Kit for the Upgraded Plate Steel Knuckles

Includes:

• 24 7/16" NF Grade 8 Bolts
• 24 Two Piece Nordlock Washers

Kit includes:

• 24x Anti Vibration Washers
• 24x 3/8" x 1" Grade 8 Bolts

When flipping the hubs on a steer 2.5 Ton Axle to run a narrow track width, you will need to remove the factory Spindle Studs, then replace them with this kit that allows the backside of the Wheel Studs to clear the Spindle bolt heads. Keep in mind some grinding on the backside of the Wheel Studs will be required. This kit will make sure the amount of material needed to be removed will be an absolute minimum.

Used/Greasy

These chunks are good used take outs, they may show signs of wear on common replacement parts. Inspected for gear damage and bearing failure.

These are good take outs from fresh military axles, low cost and in great condition

New Pinion Seals are available for purchase

Click the link and submit for a quote if you require shipping

2.5 Ton Chunk Inspection Cover

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

Includes:

• Inspection cover gaskets top and side
• Assortment of Pinion Shims

Replacement Gaskets for your 2.5 Ton Axles. Help keep oil where it belongs!

These are made from high quality Garlock material to seal oil in and water out.

The complete Kit will work for front and rear 2.5 Ton Top Load Axles in M35 Military Trucks.

Pinion crown nut for the 2.5 ton axle,

Price is for 1 good used nut

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

2.5 Ton Pinion Yoke Washer, this is a hardened washer that sits behind the crown nut holding on the pinion yoke

price is for 1 good used washer

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

4 bolt pinion flange for the 2.5 ton axle

price is for 1 yoke in good used condition

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

2.5 Ton Spool, this is a drop in 16 Spline Spool made from Billet Steel, this spool only replaces your 2.5 Ton Spider Gears, and not the entire carrier.

Please see the tutorial for installation guidelines.

SPOOL TUTORIAL

Price is for 1 fill plug in good used condition, 1/2" drive with copper gasket

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **
