20X10, Will fit 5 Ton and Meritor Axles

Hutchison Double Internal Locking Wheels, unlike typical Beadlock Wheels that clamp the Tire to each bead with a separate ring, the Hutchison style Wheels, use a 2 piece Wheel along with a Tire insert. The Tire insert fits inside the Tire, up against the Tire bead. Once fit into the Wheel, the 2 halves of the Wheel are pulled together, essentially crushing the Tire against the Wheel.

10x285 Bolt Pattern

Torque Spec for Hutchinson Beadlock Mounting Bolts:

PN: WI 1233-C
Spec: 200 (+/- 10) ft-lbs

PN: WO 1199-A
Spec: 200 (+/- 10) ft-lbs

PN: WO 1184-C
Spec: 200 (+/- 10) ft-lbs

For any other questions Hutchinson can be contacted directly at 609-858-5672

Wheel Part Number can be found on either Outer Ring or the Inner Bell of all Hutchinson Wheels, please see photo with Part Number Circled in the images below.

 **Do Not come with Beadlock Inserts, we do carry stock on them you can find them Here**

***Please note Rims are subject to availability, shipping will be charged separately, please contact us for availability and a shipping quote***

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

20x10, will fit 5 Ton and Meritor Axles

Hutchison Double Internal Locking Wheels, unlike typical Beadlock Wheels that clamp the Tire to each bead with a separate ring, the Hutchison style Wheels, use a 2 piece Wheel along with a Tire insert. The Tire insert fits inside the Tire, up against the Tire bead. Once fit into the Wheel, the 2 halves of the Wheel are pulled together, essentially crushing the Tire against the Wheel.

 **Do Not come with Beadlock Inserts, we do carry stock on them you can find them Here**

***Please note Rims are subject to availability, shipping will be charged separately, please contact us for availability and a shipping quote***

 ** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

Meritor 611 Axle Shaft Seal

This seal fits in the Meritor 611 Steer Axle and is the same seal in the axle tube as it is in the Spindle

Price is for 1 seal

Thrust Washer, for the Meritor Front Axle Shaft. This is the same washer that is found in the spindle and the axle tube.

Item #41 on parts breakdown

CTIS Lug Nut

Items #21 & 22 are Outer Hub Bearings

Items #32 & 33 are Inner Hub Bearings

Each Kit includes:

• 1x Inner Hub Bearing and Race (Items #32 & 33)
• 1x Outer Hub Bearing and Race (Items #21 & 22)
• 1x Hub Seal (Item #34)

Item #2 on Parts Breakdown

Reman Part

Please Contact Us for Availability

** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

Meritor Hub Seal

Thrust Washer for a Meritor Planetary Outer Hub

This is item #4 on the breakdown

Inner Hub CTIS

Item #25 on Parts Breakdown

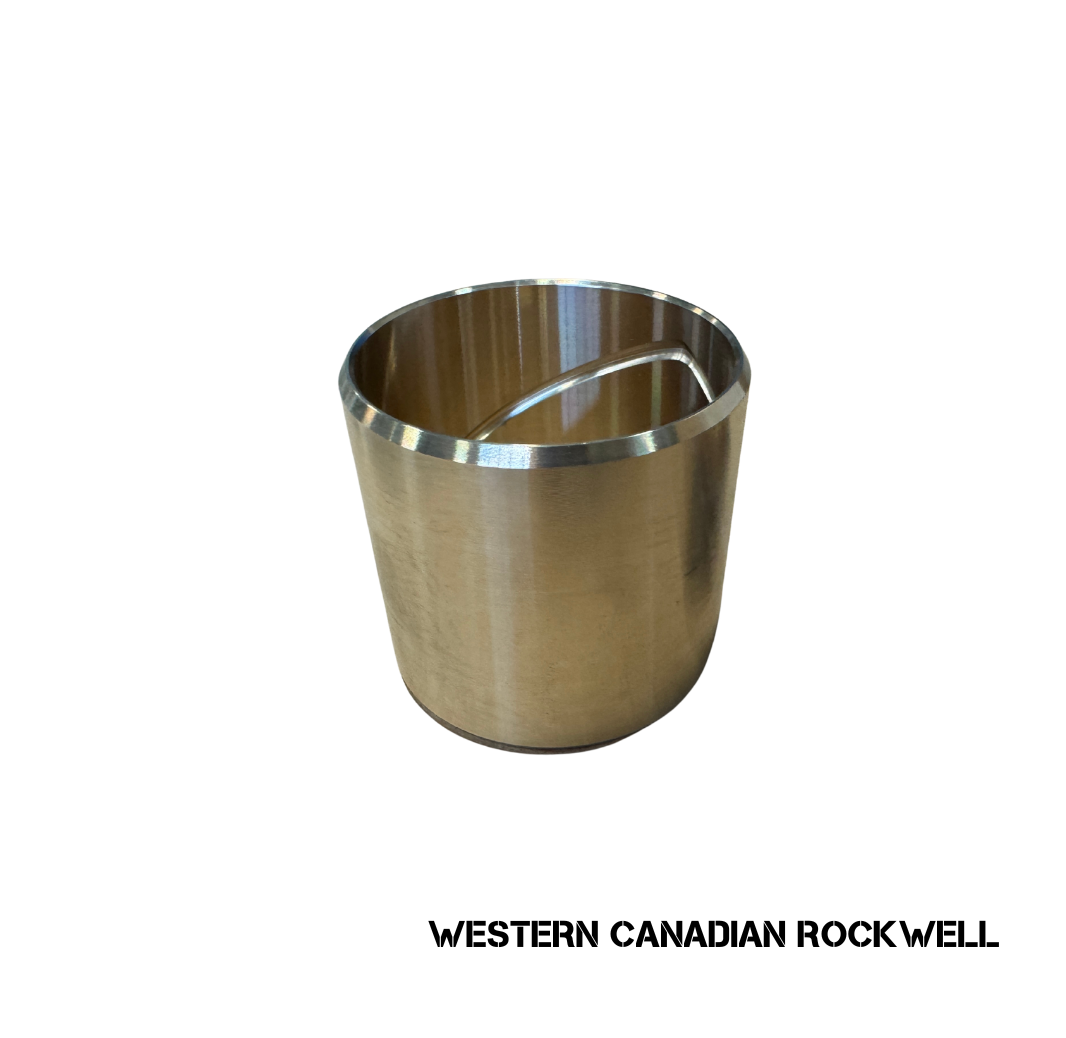

Meritor King Pin Bushing, these Bushings are the same upper and lower, will fit 611 and MX23 axles

Price is for 1 Bushing

Item #33 on the Parts Breakdown

Upper king pin cap, machined off for a nice flat surface, perfect to add high steer arms or shock mounts

King Pin Cap includes King Pin

Item #9 & 3 on the Parts Breakdown

 ** Parts are refurbished, meaning they may show slight signs of wear, but will work exactly as intended, if you prefer brand new please contact us for options **

Meritor 611 King Pin Seal, this seal fits under the Meritor King Pin and helps keep mud and water out of the Bushings

Price is for 1 seal

Item #4 on the Parts Breakdown

King Pin Shim Kit comes with one of all the sizes:
0.003, 0.005, 0.010

Item #8 on the Parts Breakdown

Works with the following Axles:

• 2.5 Ton
• 5 Ton
• Meritor
• F106

Maintenance Manuals for all our Axles and T-600 Transfer Case
