32 Spline

This 1410 / 1480 series companion flange is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The flange has the required chamfer at the base of the hub to clear the bearing cage on Atlas transfer cases.

30 Spline 14 Bolt Companion Flange

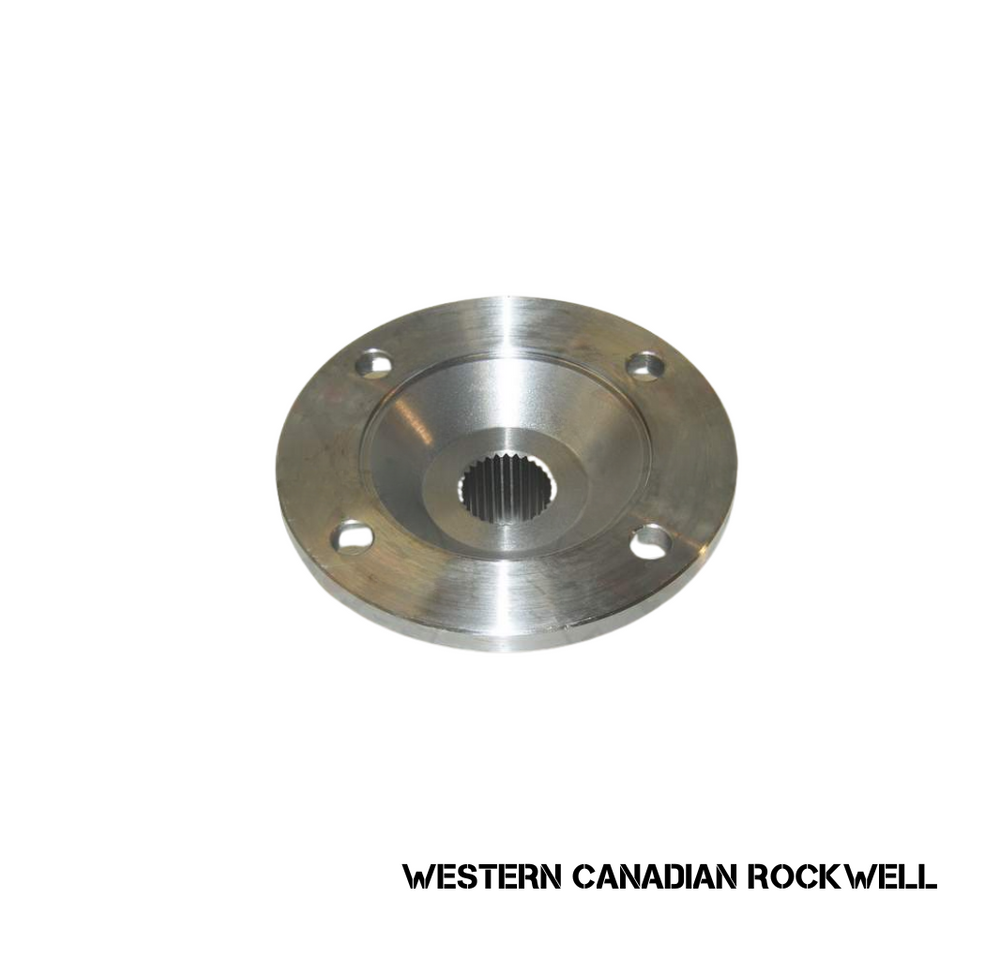

Companion Flange - Splined Bore
1410 series, Ø1.590x30 spline, Ø2.200 hub diameter
4 Drilled Holes on 4.750BC, Ø3.750-F pilot

This 1410/1480 series companion flange is designed for the GM Corporate 14, 14 bolt, 10.5" ring gear axle found in many 3/4 and 1 Ton Chevy and GM trucks from 1973 to today.

32 Spline

End Yoke - Splined Bore

FORGED 1410 series, Strap Kit Style, Ø1.401x 32 spline, Ø2.125 hub diameter.

This Forged 1410 series yoke is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The yoke has the required chamfer at the base of the hub to clear the bearing cage on Atlas transfer cases.

End Yoke - Splined Bore

FORGED 1410 series,  Strap Kit Style,Ø1.326x30 spline, Ø1.750 hub diameter.
GM NP203 and NP205 30 spline front outputs.

We designed this 1410 series  Strap Kit Style, yoke to fit the 30 spline front output shaft common on GM NP203 and NP205 transfer cases in the 70s and 80s

10 Spline

End Yoke - Splined Bore

FORGED 1410 series,  Strap Kit Style, Ø1.250x 10 spline, Ø1.750 hub diameter.
GM NP205 10 spline front outputs.

All yokes come with bolt & strap kits.

If you require U-bolts instead of strap kits pls contact us before purchasing.

Pinion Flange to adapt a Dana 60/70/80 axle to a 1410/1480 Driveshaft

The max running angle for the 1410 CV Joint is 17°, if you go to a smaller 1350 u-joint, you can get 20°, however you will lose strength in the joint.

1410 CV Specifications:

BOLT CIRCLE: 4.25
BUTT DIAMETER: 2.26
CL TO CL OF CENTER YOKE: 3.48
CL TO POINT OF WELD: 2.10
CV HEAD STYLE: Flange
DL SERIES: 1410
HOLE/THREAD SIZE: 0.46
JOINT ANGLE: 22
Overall Length: 7.32
PILOT DIAMETER: 3.12
TUBING DIAMETER AND WALL: 2.500X.120

5 Ton U-Joint Driveshaft Adapter work with 1610 U-Joint

Cross Cut To 5 Ton Driveshaft
These adapters will allow you to run the round flange style 5 Ton Driveshaft with your cross cut pattern Axletech Pinion Yoke. U-Joint sizes that work are 1610 and 1710

Cross Cut To 1410/1480/1550
These Adapters will allow you to run the common 4 bolt style u-joint adapter with the cross cut pattern Axletech Pinion Yoke. U-Joint Sizes that work are 1410, 1480, 1550
**Contact us for Quote**

Wide To 1410/1480/1550
These Adapters will allow you to run the common 4 bolt style u-joint adapter with the oval wide pattern Axletech Pinion Yoke. U-Joint Sizes that work are 1410, 1480, 1550

Does NOT include 4 bolt or round flange u-joint adapters

2.5 Ton Used Driveshaft,
1410 U-Joints

these come as used surplus drive shafts, all Spicer genuine parts including greasable U-joints, and both 4 bolt flanges that will bolt up to your 2.5 ton axles, 29" long collapsed, 32.25" long extended, 3" diameter tube

1480 Driveshafts- 30" long, used take off drive shafts, complete with 4 bolt Rockwell adapters

1550 - 51" long, used take off drive shafts, complete with 4 bolt Rockwell adapters

Contact for other alternatives, we also sell drive shaft tube if you need to extend them

these are currently out of stock, we do have new and used parts avalable, just not complete driveshafts, contact for more info

Used 5 Ton Driveshaft, Contact us for U-Joint adapter options

30" Long to the edge of the flange, comes as pictured with both flanges, available with 1610 or 1710 U-joints

1610 uses 3.5" .083 tube

1710 uses 4" .083 tube

1410 and 1480 Sealed and Greaseable U-Joint, commonly found in 2.5 Ton drivelines

Genuine Spicer 1550 replacement Driveline U-Joint, includes all new hardware

Genuine Spicer 1710 & 1610 replacement Driveline U-Joint, includes all new hardware, commonly used on 5 Ton Drive Shafts

New Surplus Crate Axletech Driveshafts wil fit Narrow Axletech axle with cross cut pinion flange

 Spec's

• 31.5" Long Flange To Flange Collapsed
• 25.5" Long Center Of U-Joint To Center Of U-Joint Collpased
• 4.75" OD Driveshaft Tube
• 4.75" Long Slip Joint
• 2.5" OD Slip Joint
• 1.875" U-Joint Cap
• 30 Degree Max Angle
• 65 lbs

These are a round pattern 1610 U-joint adapter, they are similar to the round 5 ton U-joint adapter only with a smaller OD. These are handy for fitting 1610 driveshafts on yokes with not alot of extra space.

Dimensions are listed below.

Series: 1610
Flange Or Swing Dia. In.: 6.875
Bolt Circle Dia. In.: 6.125
Bolt Hole Dia. In :.375 - DRILLED
Number Of Bolt Holes: 8
Pilot Dia. M=Male F=Female: 6.625 - MALE
Flange Face To C/L In.: 1.875
Outside Yoke Dimension In.: 5.312
Yoke Bearing Dimension In.: 1.875
